Automated Parts Washers
Improve your productivity, lower expenses, and enhance your sustainability profile with Apollo Engineering's parts washing solutions
Apollo Engineering’s Parts Washer Machines are engineered for efficiency in demanding industrial settings. Our automated systems significantly reduce manual labour costs while delivering superior cleaning results.
Featuring gear-driven turntables, Apollo parts washers provide 60% greater cleaning effectiveness compared to conventional methods. Programmable timers allow for off-peak operation, cutting energy consumption by up to 25%. Furthermore, advanced filtration systems extend the lifespan of cleaning chemicals, reducing operational costs by as much as 75%.
The most efficient Automated Parts Washer Machine on the market
Experience the Apollo Engineering difference
The refined design of Apollo’s aqueous automated parts washing machine makes them one of the most efficient in the market in terms of performance and whole of life costs.
The major benefits of automated parts washers – Apollo Engineering include:
- Certified fully compliant with AS4024 – Safety of Machinery to maximise operator safety
- Gear drive turntable for controlled rotation speed
- Automatic water level control and element protection
- 7-day time clock for pre-programmed operation of the heater elements
- Adjustable cycle timer
- Automatic pump-out of spent cleaning solution for ease of servicing
- Options available such as filtration, oil skimming, metallic particle separation, and more

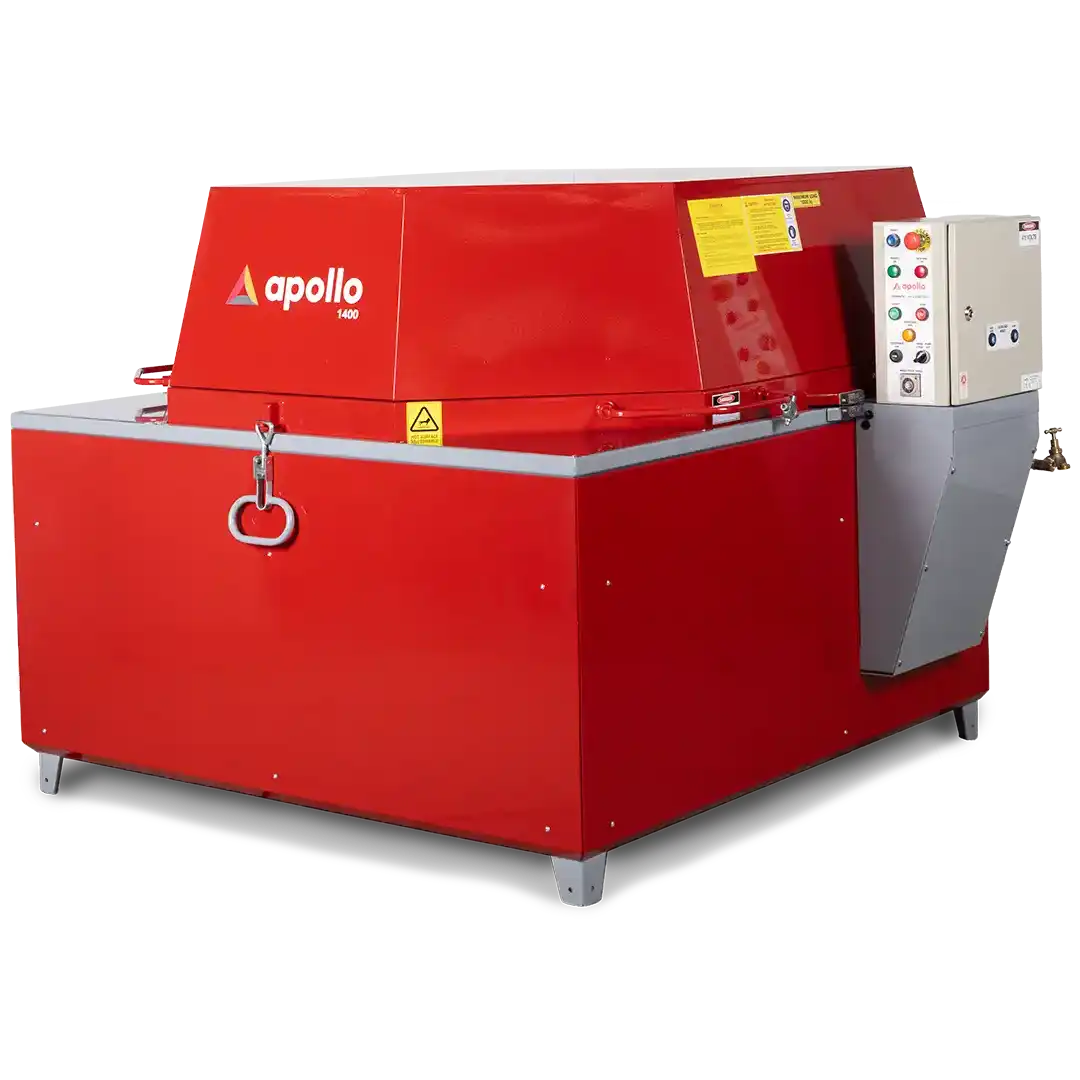

For mid-size jobs, the SW1400, with its gear-driven turntable, delivers 60% greater cleaning efficiency compared to conventional water-driven models. Its programmable timer allows for operation during off-peak hours, optimising energy usage and lowering costs.
Apollo Engineering’s commitment to sustainability is evident in our advanced filtration systems that extend cleaning solution lifespan and reduce waste. The integrated oil skimmer ensures parts are free of oil residue, promoting optimal component performance.
Our parts washer machine range further exemplifies our dedication to cost-effectiveness and environmental responsibility. These powerful units can save businesses up to 75% on chemical costs and 25% on electricity consumption through their advanced centrifugal filtration technology.
Compare the Features
| Specification | SW3216 Super-Heavy Duty | SW2023 Super-Heavy Duty | SW1612 Heavy Duty | SW1409 Heavy Duty | SW1400 Mid-Size | SW1100 Mid-Size | SW800 Mid-Size |
|---|---|---|---|---|---|---|---|
| Basket Diameter | 3200mm | 2000mm | 1600mm | 1400mm | 1400mm | 1100mm | 810mm |
| Job Weight (Maximum) | 4000kg | 4000kg | 2000kg | 2000kg | 1000kg | 750kg | 250kg |
| Job Height (Maximum) | 1600mm | 1350mm or 2300mm | 1200mm | 975mm | 660mm (optional 760mm) | 630mm | 470mm |
| Water Capacity | 1000 Litres | 800 Litres | 450 Litres | 360 Litres | 330 Litres | 250 Litres | 120 Litres |
| Pump | 2 x 5.5 kW | 2 x 5.5 kW | 5.5 kW | 5.5 kW | 5.5 kW | 4 kW | 2.2 kW Westate |
| Power Outlet Required | 62 amp | 62 amp | 32A 3 Phase | 32A 3 Phase | 32A 3 Phase | 20A 3 Phase | 20 AMP, 415V 3 Phase |
| Heaters | 2 x 14.4 kW | 2 x 14.4 kW | 3 x 3.6 kW | 3 x 3.6 kW | 3 x 3.6 kW | 3 x 2.4 kW | 3 x 2.4 kW |
Automated parts washers: common questions
What types of automated parts washers does Apollo Engineering offer?
Apollo Engineering offers a full range of automated parts washers, including the SW800, SW1100, SW1400, SW1409, SW1612, SW2023, and SW3216. Each model supports different capacities, job weights, and industrial requirements, from compact units to large-scale heavy-duty machines for engine blocks and drive components.
How much cleaning efficiency do Apollo parts washers provide compared to conventional methods?
Apollo’s gear-driven turntables deliver 60% greater cleaning effectiveness than traditional water-driven systems. This improvement comes from precision-controlled rotation, powerful pumps, and optimised internal washing dynamics.
How do Apollo Engineering’s washers help reduce operational costs?
Programmable timers let the machines heat and run in off-peak periods, which can cut energy use by up to 25%. Built-in oil skimming and filtration help the cleaning solution last longer, which lowers chemical costs.
Are Apollo parts washers energy-efficient?
Yes. With features like adjustable cycle timers, 7-day programmable heating schedules, and off-peak operation settings, the washers are designed to optimise power usage without compromising cleaning performance.
What safety standards do Apollo washers meet?
Apollo automated parts washers are built to comply with AS 4024 (safety of machinery), AS 1554 and AS 3000.
What customisation options are available for Apollo's parts washers?
Options include filtration upgrades, oil skimming systems, metallic particle separation, and automatic pump-out of spent cleaning solution, all designed to make cleaning easier and extend machine life.
What’s the maximum job weight Apollo washers can handle?
Maximum loads range from 250 kg on the SW800 to 4000 kg on the SW2023 and SW3216. The SW3216 has the largest basket, at 3200 mm in diameter, for the heaviest industrial parts.
What are the heater and power specs for Apollo washers?
Depending on the model, pumps range from 2.2 kW to twin 5.5 kW pumps, with heater banks from 3 x 2.4 kW to 2 x 14.4 kW. All models run on three-phase power, from 20 A on the smaller machines to 62 A on the largest.
